VPN ( Virtual Privet Network ) is very useful feature for mobile user to connect internal network . it can connect Remote Computer with Internal network . Suppose you are out of office then you you have to complete important task of your office then You can access you office Network with the help of VPN Server .
Follow these steps to Configure VPN Server ...........
1. Click on Server Manager Icon to Install VPN Server service .
2. Click on Action Menu , then Click on Add Roles and then on the following window click on Next .
3. On the Add Role Wizard Select Network policy and Access services Check Box then Click on Next and then on the Next Window Click on Next .
4 . Now in the Role Services Option select Remote Access service and Routing underRouting and Remote Access Services and Click on Next .
5. Now on the Confirmation Option Click on Install and After Complete Installation Click on Close .
6. Now On the Server Manager Window , Click on Expand Roles then Network Policy and Access Services then Right-click on Routing and Remote Access and then ClickConfigure and Enable Routing and Remote Access and then on the Welcome wizard Click on Next .
4 . Now in the Role Services Option select Remote Access service and Routing underRouting and Remote Access Services and Click on Next .
5. Now on the Confirmation Option Click on Install and After Complete Installation Click on Close .
6. Now On the Server Manager Window , Click on Expand Roles then Network Policy and Access Services then Right-click on Routing and Remote Access and then ClickConfigure and Enable Routing and Remote Access and then on the Welcome wizard Click on Next .

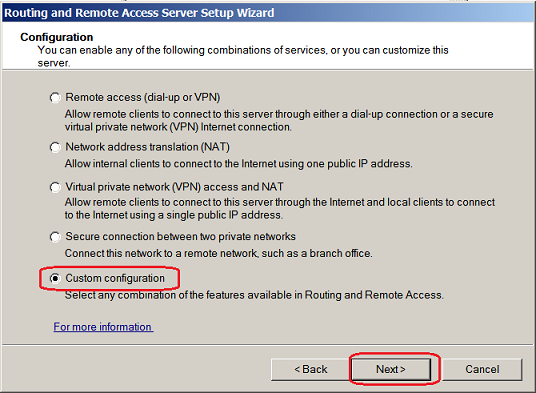

7. Now on the Routing and Remote Access setup Wizard select Custom Configurationradio button, then Click on Next .
8. Now Select VPN access check box then Click on Next and then on the Following Completion wizard Click on Finish .
9. Now Click on Start service .
10. Now On the Server Manager Window , Expand Roles then Network Policy and Access services, then Right-click on Routing and Remote Access and then Click onProperties .
11 . Now Click on IPv4 Tab, then Select Static Address Pool and then Click on Add .
10. Now On the Server Manager Window , Expand Roles then Network Policy and Access services, then Right-click on Routing and Remote Access and then Click onProperties .
11 . Now Click on IPv4 Tab, then Select Static Address Pool and then Click on Add .
12 . Now you will have to Enter the IP Address Range which you want assign to Client Computer . then Click on OK. and then Click on Apply and Ok .
